When you’re planning a warehouse or distribution center, one of the most common questions is: How big are loading dock doors? Getting the size right is essential for safe and effective loading dock operations. Installing the wrong size door can lead to damaged goods, reduced efficiency, and greater risk to employees and machinery. In this guide, we’ll answer this question in plain language, so you’ll know exactly what to consider when planning your dock layout and choosing loading dock doors.
Why Loading Dock Door Size Matters
A properly sized loading dock door ensures smooth loading and unloading. It allows forklifts and workers to safely move pallets and packages in and out of trailers. If the door is too small, trucks may not align properly, or you may lose access to parts of the trailer. This slows things down, increases labor, and creates unnecessary risk.
Standard Loading Dock Door Sizes
Loading Dock Door Widths
Most loading dock doors are 8 to 10 feet wide. Here’s a closer look:
8-Foot Wide Doors
8-foot wide doors are common in general warehouse applications. They work for trailers up to 8 feet wide, but they are not ideal for side-by-side pallets.
9-Foot Wide Doors
These doors are best for 8’6″ wide trailers, which is the standard max trailer width. 9-foot wide doors allow better access to the trailer and room for side-by-side pallets. This reduces the risk of door and track damage.
10-Foot Wide Doors
10-foot wide doors are ideal for oversized loads or for future expansion of your facility. They require more building space and are typically used in specialized applications.
Loading Dock Door Heights
Most loading dock doors are 8 to 10 feet high, with the height depending on what types of trailers you’re servicing. Here are their pros and cons:
8-Foot High Doors
- Suitable for single-high pallet loading
- Doesn’t allow full floor-to-ceiling trailer access
9-Foot High Doors
- Accommodates more load height
- Improves space usage and reduces product damage
- Can leave a gap with shorter trailers, but dock seals help close this.
10-Foot High Doors
- Supports full-height loading and high cube trailers
- Provides access to the entire interior height of the trailer
Full Access Tip
If you want full access to a trailer’s height, use this formula: Trailer height – Dock height = Required door height
For example: If the trailer is 13’6″ high and your dock is 4’0″, the door should be at least 9’6″. Round up and install a 10-foot high door.
Other Things to Consider When Choosing Dock Door Size
Driveway Slope and Dock Height
If your driveway slopes down toward the dock (called a recessed approach), your trailer’s bed will sit lower than normal. You’ll need to lower your dock height and may need to adjust your door height to match. For every 1% of slope, lower the dock height by about 1 inch.
Energy Efficiency
In temperature-controlled spaces, smaller doors help reduce energy loss. In these cases, an 8-foot wide door with foam dock seals may be better than a wider opening.
Space Between Doors
Space dock doors at least 12 feet apart in your loading dock layout to give trucks enough room to back in safely. For operations where trailer doors open at the dock, 14 feet center-to-center is ideal.
Loading Dock Door Products from Beuschel Sales
We offer a variety of reliable and durable loading dock door solutions to meet different facility needs, including:

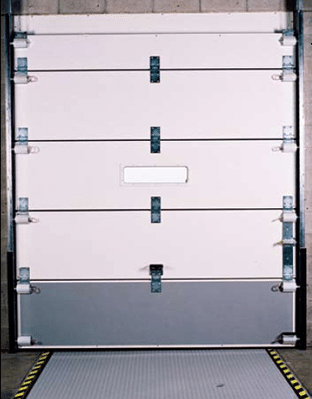

Kelley Sectional Doors
These traditional sectional doors are built for performance and durability in standard loading dock environments. Ideal for everyday warehouse use, they provide smooth operation and are available in a variety of sizes and configurations.
TKO Knock-Out Doors
TKO Knock-Out doors are designed for high-traffic docks where impacts are common. They feature impactable panels that flex or release when hit, reducing damage and downtime. These doors are perfect for busy docks looking to lower maintenance costs.
Albany High-Speed Roll-Up Doors
Albany high-speed roll-up doors are ideal for fast-paced operations where speed, energy efficiency, and durability are key. These doors open and close quickly to maintain climate zones, improve workflow, and reduce contamination. They’re great for facilities that need to separate environments or manage temperature control.
Beuschel Sales can help determine which door solution is best for your operation, whether you’re upgrading your current setup or outfitting a new facility.
FAQs About Loading Dock Doors
How wide should a loading dock door be?
9 feet wide is ideal for most standard trailers, allowing for easier access and side-by-side pallet loading. With a 48” high dock height we recommend going with 9’ W x 9’ H or a 9’ W x 10’ H door. This will allow you to have full access to the back of the trailer to load and unload product.
How tall should a loading dock door be?
10 feet high is best for full-height access, especially for high cube trailers.
Can I use an 8-foot door for standard trailers?
Yes, but it may limit efficiency and create alignment issues. A 9-foot wide door is usually a better long-term investment.
What size door do I need for oversized or flatbed trailers?
Consider at least one 10-foot wide and 10-foot high door to accommodate larger loads.
How do I choose the right dock door size?
Consider the types of trucks you’ll be servicing, your driveway layout, your building’s interior space, and whether temperature control is a factor. We can help you determine what is ideal for your loading dock.
